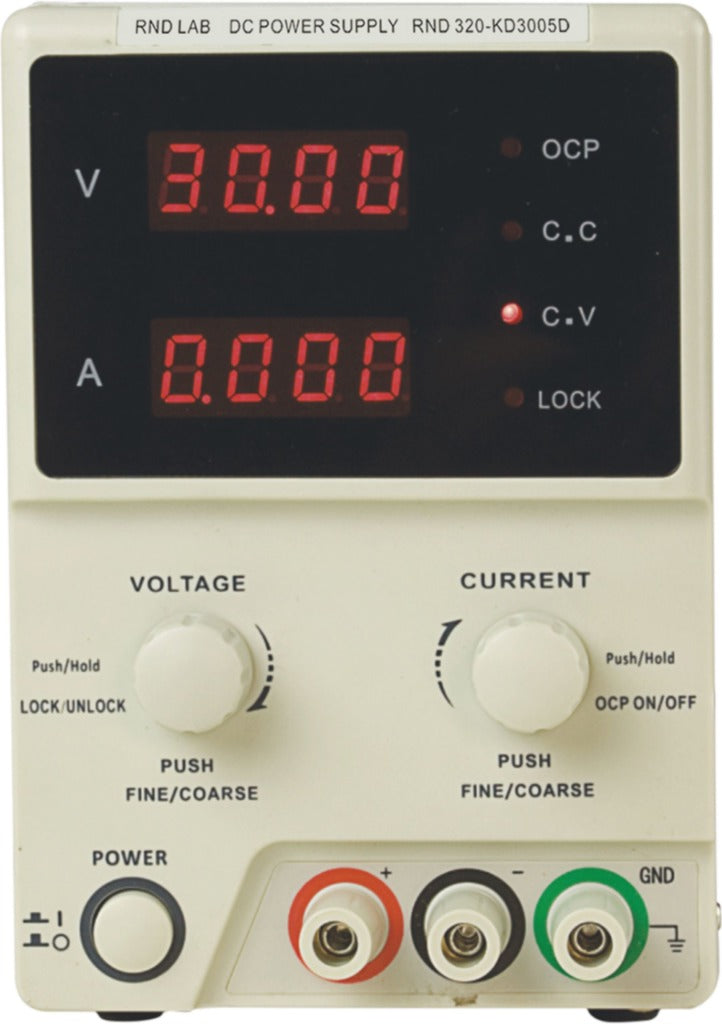

RND Lab RND320-KD3005D Laboratoriumvoeding 1 Ch. 0...30 Vdc 5 A

For operation with constant voltage and constant current
Finely adjustable current and voltage settings
Separate indicators for output current/output voltage
Fully digitised control
Overload protection
Compact solid metal housing
Large LED display for output values, device status and memory

• Afmetingen L x B x H: 110 x 260 x 156 mm
• Breedte: 260 mm
• Hoogte: 156 mm
• Ingangsspanning: 230 VAC
• Lengte: 110
• Levering inclusief: Manual (English), Netvoeding, Voedingskabel
• No. of Output Channels: 1 Ch.
• Output current 1: 0...5 A
• Output current 1 max.: 5 A
• Output current 1 min.: 0 A
• Output voltage 1: 0...30 VDC
• Output voltage 1 max.: 30 VDC
• Output voltage 1 min.: 0 VDC
• Reactietijd: 100 ms
• Residual ripple: 2 mVrms
• Resolution, current: 1 mA
• Resolution, voltage: 10 mV
• Scherm: LED
• Type stekker: F (CEE 7/7)
• Uitgangen: 1
• Veiligheid: Overcurrent protection, Overvoltage protectie
• Gewicht: 4.85 kg
